Testo NanoMet3 Portable nanoparticle measurement system

Contact Us for Price

Portable nanoparticle measurement system

Road traffic is seen as the main cause of air pollution in our cities. In order to minimize the health hazard due to fine particle pollution, automobile manufacturers have the obligation to develop the cleanest possible engines and the most efficient possible exhaust gas cleaning systems. For this purpose, the research and development departments require highly sensitive technology which can measure the nanoparticles in the exhaust gases exactly and reliably during driving.

The automotive industry has high demands:

  • Durable, robust measurement technology
  • Reproducible measurement results
  • Portable measurement system PEMS-PN (Portable Emission Measurement System – Particle Number) for use in vehicles while driving
SKU: Testo NanoMet3 Portable nanoparticle measurement system Category:

Description

Portable nanoparticle measurement system

Road traffic is seen as the main cause of air pollution in our cities. In order to minimize the health hazard due to fine particle pollution, automobile manufacturers have the obligation to develop the cleanest possible engines and the most efficient possible exhaust gas cleaning systems. For this purpose, the research and development departments require highly sensitive technology which can measure the nanoparticles in the exhaust gases exactly and reliably during driving.

The automotive industry has high demands:

  • Durable, robust measurement technology
  • Reproducible measurement results
  • Portable measurement system PEMS-PN (Portable Emission Measurement System – Particle Number) for use in vehicles while driving

The solution: testo NanoMet3 for real driving emissions

Nanoparticle measurement system testo NanoMet3
Portable emission measurement system testo NanoMet3

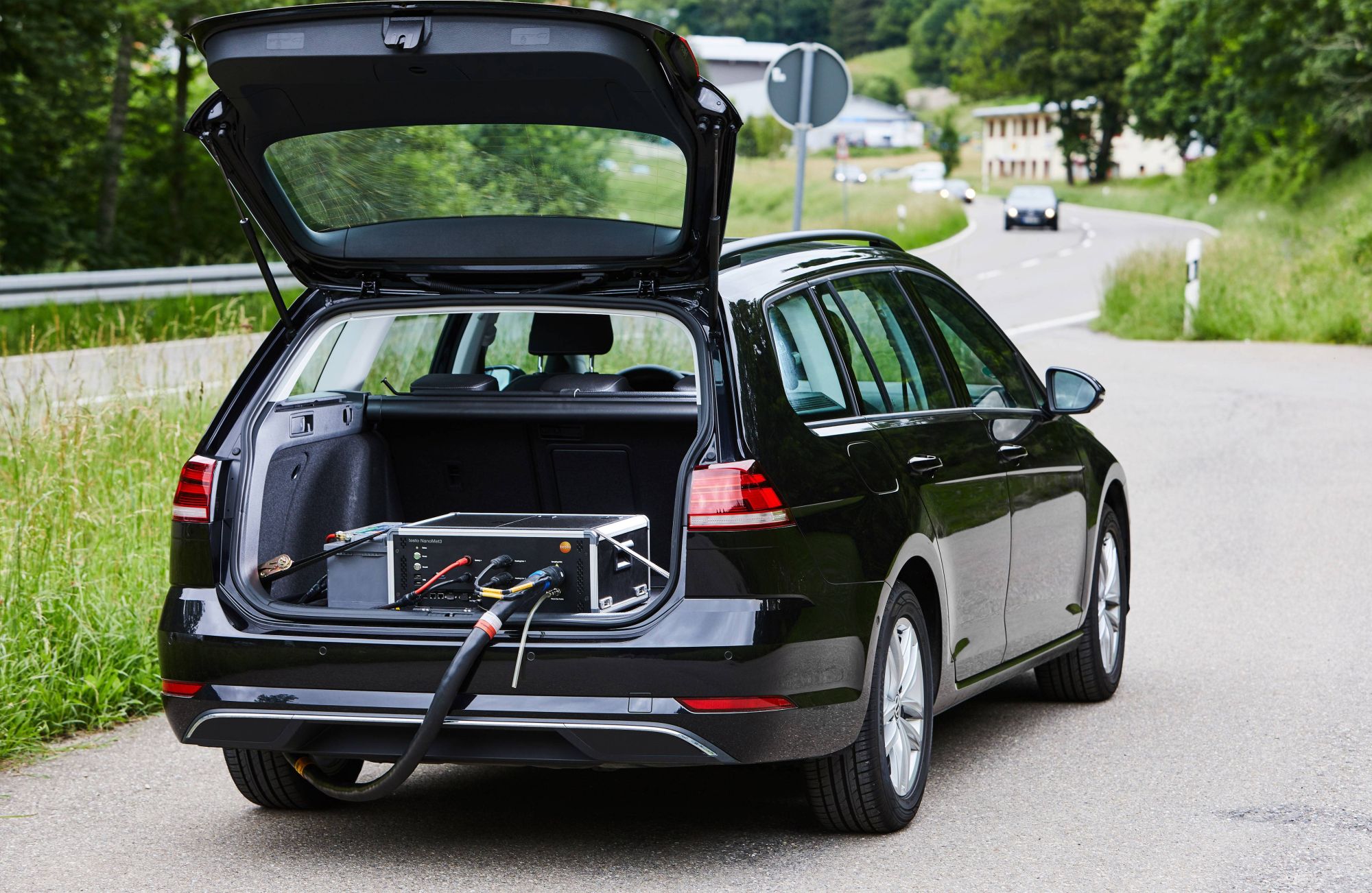

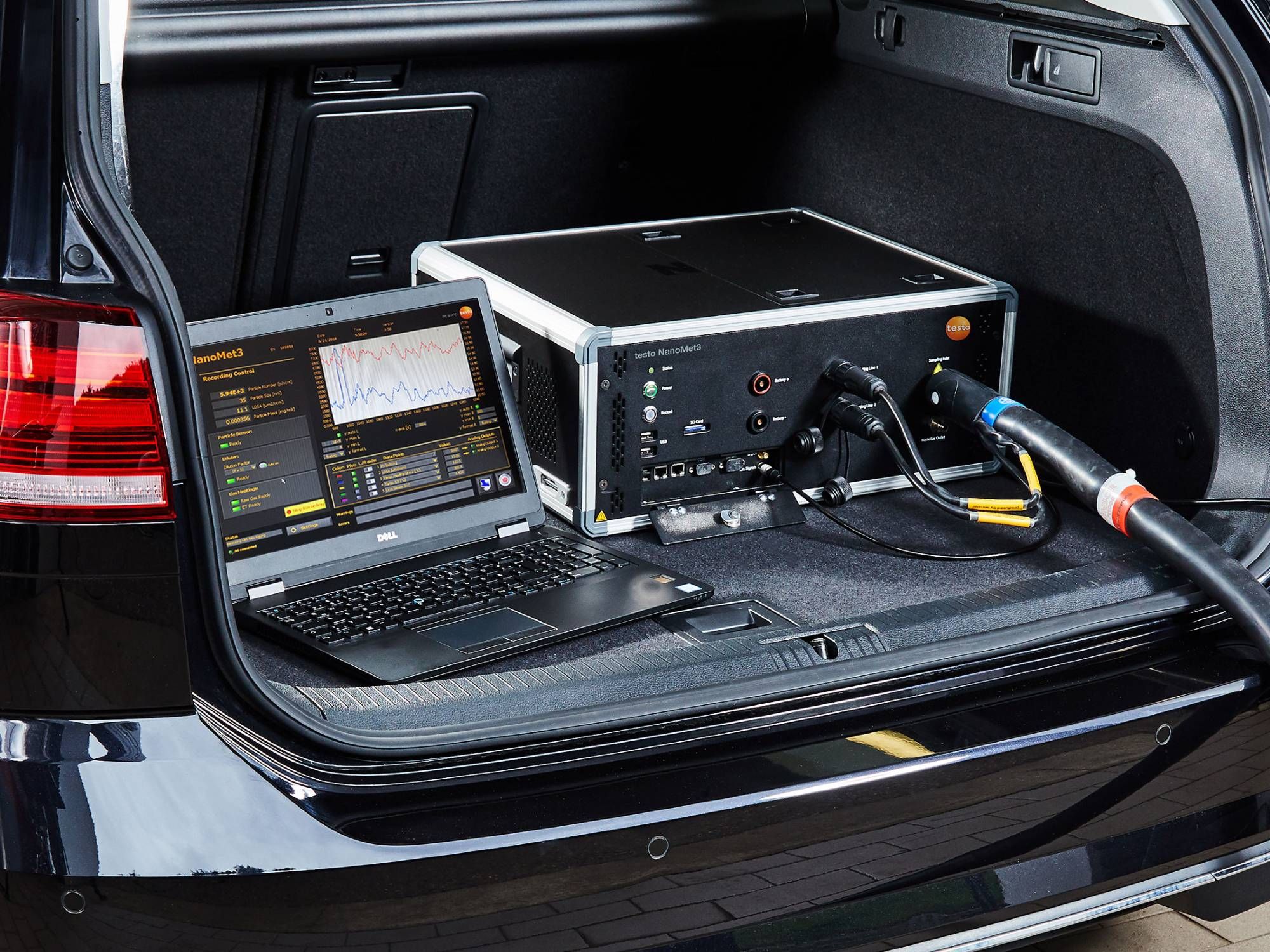

The portable nanoparticle measurement system testo NanoMet3 was specially developed for operation in vehicles under real driving conditions. The measurement system dilutes high particle concentrations in the directly sampled gas with the help of a rotary disc diluter, and removes volatile components in the integrated evaporation tube. With the testo NanoMet3, the user has not just a reliable measuring instrument for measuring nanoparticles, but also an integrated PMP-compliant exhaust gas preparation.

The advantages:

  • Measurement of particle number concentration, average diameter, surface concentration of lung-deposited particles (LDSA) and particle mass.
  • Particle measurement according to RDE for type testing in accordance with Euro 6c
  • Identical instrument settings for petrol and diesel vehicles
  • Exhaust gas preparation with integrated PMP thermodilution
  • No operating materials required
  • One-button operation

Product Description

Because soot particles are among the most dangerous health hazards, the integration of particle measurement into emissions standards is increasingly important. The testo NanoMet3 particle counter ensures high-precision determination of both the number and the average diameter of solid nanoparticle concentrations according to the “Real Driving Emissions” type testing under the Euro 6c emissions standard.

Moreover, the testo NanoMet3 was honoured as “Golden Instrument” reference during the crucial phase of the JRC´s Inter Laboratory Comparison Exercise (ILCE).

Portable nanoparticle counter – typical applications

The testo NanoMet3 portable particle counter offers high-precision measurements over a large concentration range and is therefore very suitable for a wide range of applications:

  • Particle measurement according to RDE for type approval in accordance with Euro 6c
  • Particle determination for the research and development of particle filters
  • Characterization of particle emissions from gasoline and diesel engines



testo NanoMet3 at a glance

  • Portable nanoparticle counter for the measurement of number concentration and average diameter of nanoparticles in the 10 to 700 nm size range
  • Real Driving Emissions (RDE) type approval under the Euro 6c emission standard
  • Ease of use thanks to the one-button operation
  • Integrated PMP gas conditioning thermodilution
  • Easy handling
  • Identical instrument settings for measurements of gasoline and diesel vehicles
  • No operating materials, such as working fluids or radioactive sources needed



Delivery Scope

Portable testo NanoMet3 nanoparticle counter, including:

  • Transport case
  • Heated sampling hose
  • LAN cable
  • Wireless antenna
  • SD card
  • USB extension cable
  • Cable for external signal
  • Battery cable
  • D-sub socket and D-sub plug
  • Exhaust gas hose with coupling socket
  • Country-specific mains power cord and calibration sheet
